Home / Mobile Screener

Mobile Screener - Tracked Screening & Scalping Equipment

10 Models Available

Tracked Mobile Screeners for Aggregate, Topsoil & Recycling

A mobile screener turns mixed feed into clean, saleable fractions on site — and it is the machine that closes the loop after any crusher or shredder. UPSEN builds three families of tracked screeners: vibrating aggregate screens (UYK series) for precise 2-3 deck sizing, heavy-duty scalpers (UZS series) for stripping fines and oversize from contaminated feed, and trommel screens (UTS series) for topsoil, compost and sticky material.

The ten models on this page cover 30-500 m³/h, are self-propelled on tracks with wireless remote control, and are powered by Cummins, Yanmar or Kubota diesel engines. Screened behind our crushers and shredders, they produce finished aggregate, compost or recycled sand at the point of use — CE-certified machines delivered to 80+ countries.

Aggregate & Quarry Topsoil & Compost Sand & Gravel C&D Fines Scalping & Mining

Quick Selection Guide by Family

Tell us your feed, the fractions you need and whether it feeds from a crusher — we will recommend the right deck and screen media.

Ask Carlsen on WhatsApp

Aggregate Screener (4 Models)

UYK1235
View Details

UYK1235

50-100 m3/h Cummins 43 kW 8.8 tons
UYK1545
View Details

UYK1545

80-150 m3/h Cummins 54 kW 13.5 tons
UYK1860
View Details

UYK1860

100-200 m3/h Yanmar 18 kW 18.5 tons
UYK-F1550
View Details

UYK-F1550

300-500 m3/h Cummins 93 kW 18.5 tons

Scalping Screener (4 Models)

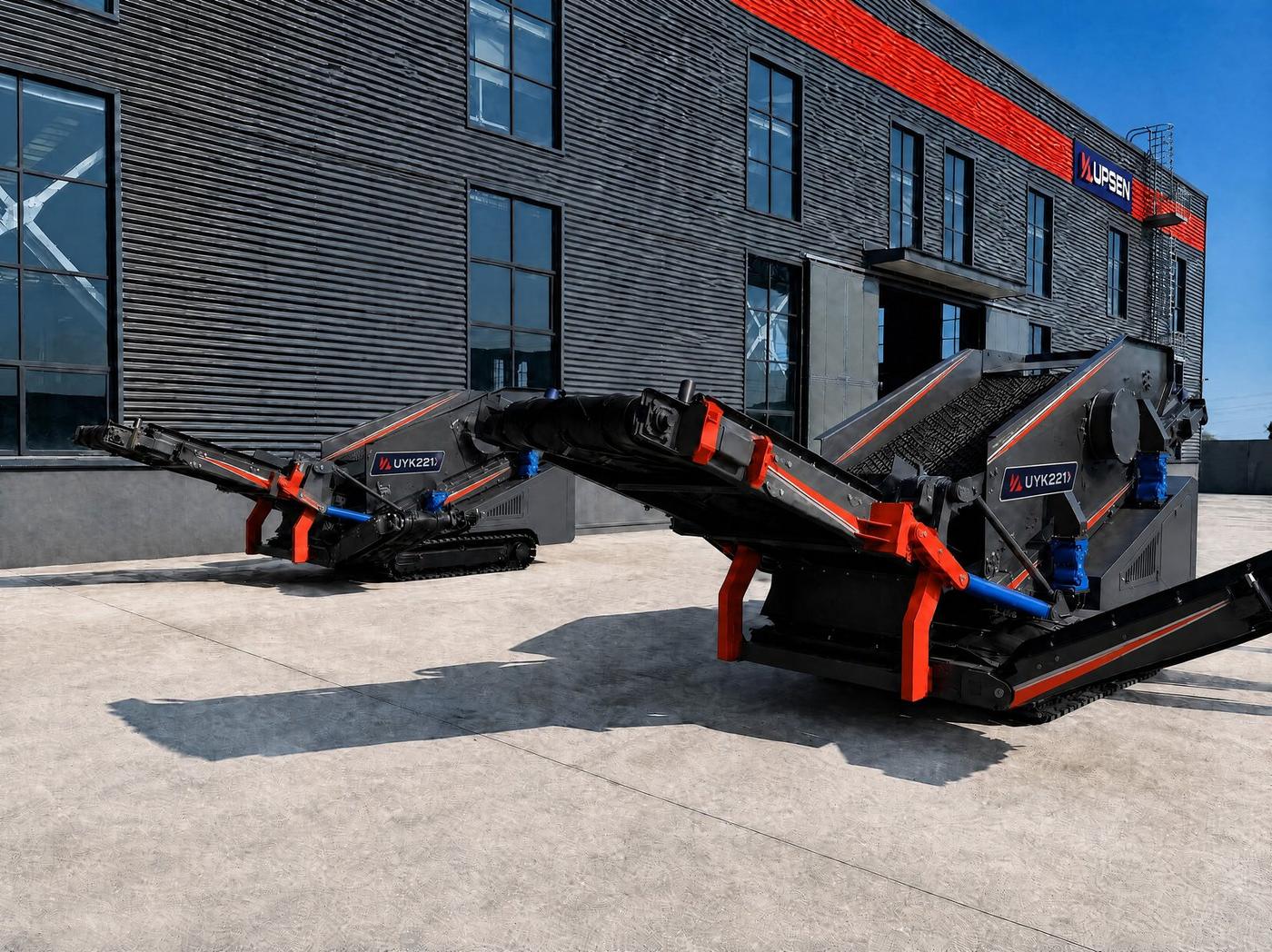

UYK221
View Details

UYK221

30-80 t/h Kubota 18.2 kW 5.2 tons
UZS1230
View Details

UZS1230

50-200 t/h 45-75 kW Diesel 8-12 tons
UZS1340
View Details

UZS1340

50-150 m3/h Cummins 54 kW 12-15 tons
UZS1545
View Details

UZS1545

150-300 m3/h Cummins 83 kW 18-22 tons

Trommel Screener (2 Models)

UTS50
View Details

UTS50

80-250 t/h Yanmar 54 kW 8.5 tons
UTS2255
View Details

UTS2255

100-300 m3/h Cummins 83 kW 15.5 tons

Which Screener Type Do You Need?

All three UPSEN families are tracked and remote-controlled — the difference is how they size material. Match the technology to your feed and your spec.

Vibrating Aggregate Screens (UYK)

Vibrating multi-deck screens with 2-3 deck options for precise, high-volume aggregate sizing — the standard finish for crushed stone, sand and gravel. Best when product quality and accurate cut points are the spec.

Heavy-Duty Scalpers (UZS / UYK221)

High-torque screen decks built to strip dirt, fines and undersize from contaminated feed — demolition rubble, overburden, recycled aggregate. The front-end machine that keeps crushers and screens downstream clean.

Trommel Screens (UTS)

Rotating drum screens that handle sticky, high-moisture and organic material without blinding — the standard tool for topsoil, compost, mulch and green waste. Gentle on material and simple to operate.

How screeners fit your process

1

After a crusher
Screen crushed aggregate into saleable fractions; oversized material returns to the crusher.

2

Before a crusher
Scalp dirt and fines first so only rock reaches the crushing chamber.

3

Standalone
Screen topsoil, compost, sand or demolition fines into sellable products on site.

4

Stockpile it
Add a UPSEN mobile conveyor to stack each fraction and cut loader hours.

Not sure which family fits? Send feed photos and your target fractions to Carlsen on WhatsApp +86 15333827088.

Applications & Model Selection Guide

Typical application, recommended starting model and rated range. Capacity is stated in m³/h or t/h per model depending on the material family — our engineers confirm throughput for your specific feed.

Application / Material Recommended Models Capacity Range Screener Type
Aggregate & quarry sizingUYK1235 / UYK1545 / UYK1860 / UYK-F155050-500 m³/hVibrating 2-3 deck
Topsoil, compost, mulchUTS50 / UTS225580-300 m³/hTrommel
Sand & gravel processingUYK1545 / UYK186080-200 m³/hVibrating
C&D waste & demolition finesUZS1340 / UZS154550-300 m³/hHeavy-duty scalper
Overburden & topsoil strippingUYK221 / UZS123030-200 t/hScalper
Coal, ore & heavy scalpingUZS1545 / UYK-F1550150-500 m³/hScalper / Vibrating

Mobile Screener FAQ

Answers to the questions contractors and recyclers ask most about tracked screening plants.

How much does a UPSEN mobile screener cost?

Price depends on the family (vibrating, scalper or trommel), model and deck configuration. Contact Carlsen Wang (WhatsApp +86 15333827088 or 15333827088@163.com) with your feed and target fractions, and we will send a tailored quotation.

How many decks do UPSEN screeners have?

The vibrating aggregate screens are available with 2-3 deck configurations depending on model, letting you produce multiple fractions in one pass. Screen media can be selected for your cut points.

Trommel or vibrating screen — which is better?

For clean aggregate with precise cut points, a vibrating screen (UYK) is the standard. For sticky, wet or organic material such as topsoil and compost, a trommel (UTS) resists blinding and keeps production steady. Send us your material and we will recommend one.

Why do you state capacity in both t/h and m³/h?

Different models are rated on the material family they are built for — scalpers in tonnes per hour and aggregate/trommel units in cubic metres per hour. Actual throughput depends on feed density, moisture and cut size; our engineers confirm the figure for your material before you order.

Can a screener work with my crusher?

Yes — screening is the standard finishing step after crushing and shredding. Feed the crusher output to a UYK or UZS screener to produce sized fractions and return oversize to the crusher, closing the circuit on site. See our crusher range for pairing options.

How are UPSEN screeners transported between sites?

All models are self-propelled tracked units weighing from about 5 to 22 tons — they travel by standard flat-rack or trailer and move around the site under their own tracks with wireless remote control.
